Floor Plan for Joseph Smith’s Store, between February and December 1841

Source Note

Floor Plan for JS’s store, [, Hancock Co., IL, between Feb. and Dec. 1841]; drawing and text in handwriting of and unidentified scribe; one page; Newel K. Whitney, Papers, BYU. Includes archival marking.

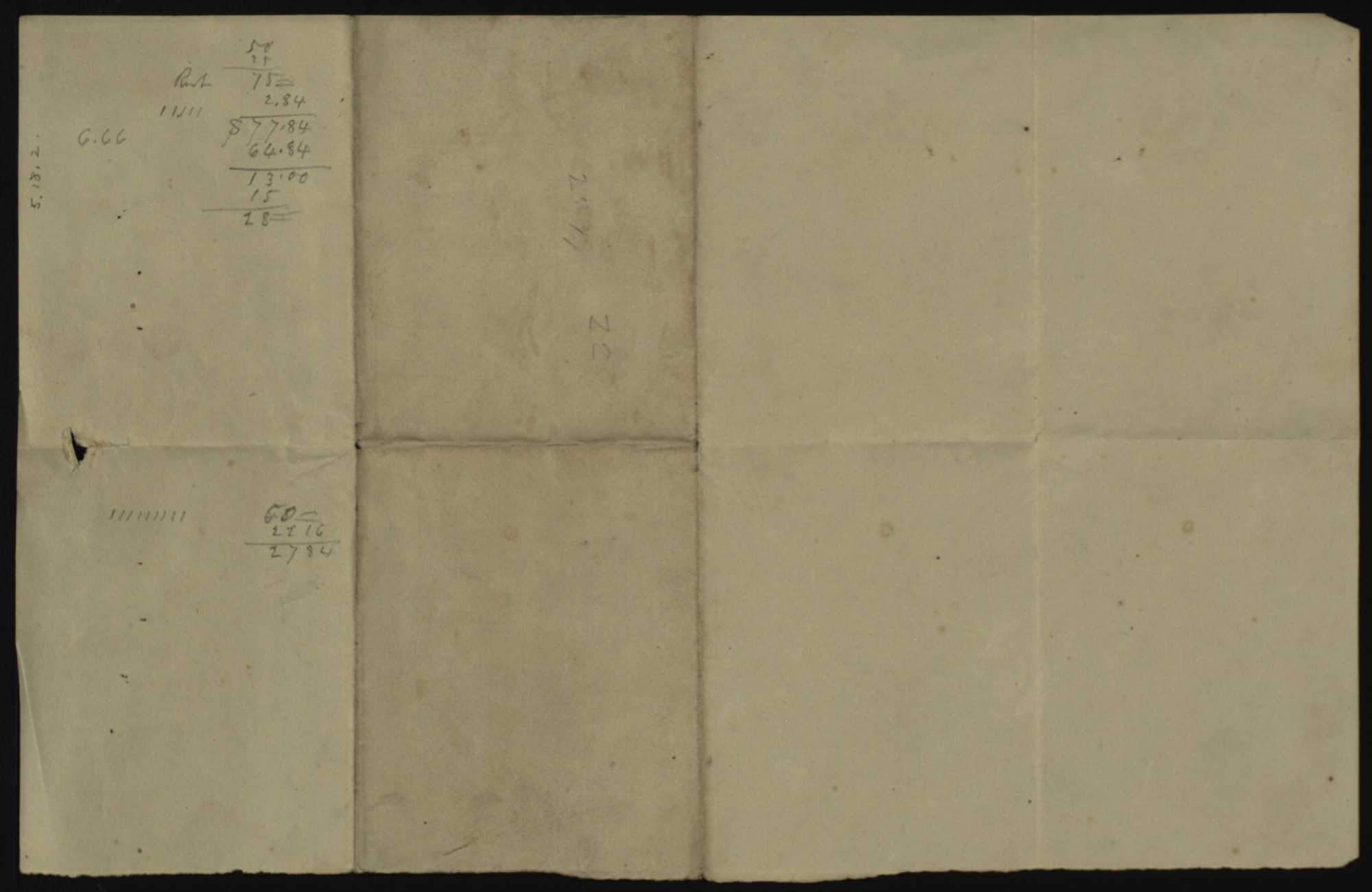

Single leaf measuring 7⅞ × 12¼ inches (20 × 31 cm). The original size of the leaf is unknown, as the bottom edge was hand cut. The drawing and text of the floor plan are in graphite on the recto. The verso was apparently blank but was later used as scratch paper—it includes financial calculations that are apparently unrelated to the floor plan.
This document, along with many other personal and institutional documents that kept, was inherited by Newel K. and ’s daughter Mary Jane Whitney, who was married to Isaac Groo. The documents were passed down within the Groo family. Between 1969 and 1974 the Groo family donated their collection of Newel K. Whitney’s papers to the Harold B. Lee Library at Brigham Young University.
